Replace the CPU (AMD) | OMEN 25L GT11-0000a, GT11-0000i, 30L GT13-0000a, GT13-0000i Desktop PC | HP

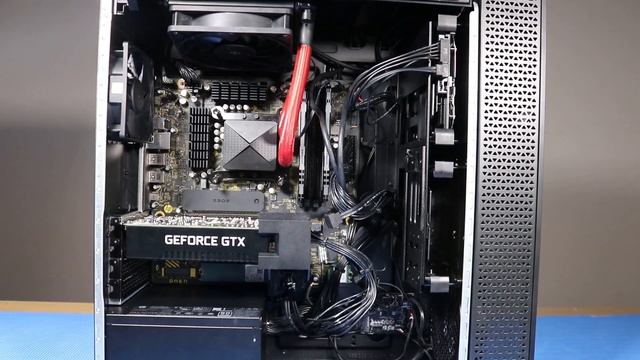

Learn how to remove and replace the CPU (AMD) for the OMEN 25L GT11-0000a, GT11-0000i, 30L GT13-0000a, GT13-0000i Desktop PC. For other helpful videos go to http://hp.com/supportvideos or http://youtube.com/hpsupport. More support options for your HP device are available at http://hp.com/support. Follow these steps to Learn how to remove and replace the CPU (AMD) for the OMEN 25L GT11-0000a, GT11-0000i, 30L GT13-0000a, GT13-0000i Desktop PC: - NOTE: Only certain models in this platform series support the configuration of the following components: - glass side panel - liquid cooling system - lighting control module - LED lighting bar - glass front bezel - front RGB fan - front lighting module - Before you begin: Remove the access panel, system fan, and heat sink. - Removal - Gently press down the CPU load lever and then push it to the side, away from the CPU socket, to allow it to rise to the spring-loaded position. - Grasp the edges of the CPU and carefully remove it from its socket. - As you complete the replacement of a part for the desktop, you should ensure that all of the cables are correctly routed. The interior of the system should never look like this after a service event. - As you route any cables that you’ve connected back into position, be sure to use the clips, hooks, and tape that are provided on the chassis for this purpose. - This prevents the possibility of cables snagging or sagging when the desktop is moved. It also helps ensure clear sight and access to the components should any further troubleshooting or servicing be needed. - Replacement - NOTE: Identify the golden triangle on the corner of the chip assembly and the golden triangle on the socket on the motherboard by the mark on the corner of the socket stencil. - Hold the CPU over its socket in the motherboard and align the golden triangle at the corner with the corresponding triangle marked on the motherboard. - Place the CPU into its socket on the motherboard. - Push the CPU load lever down and then sideways to secure the CPU. Caution: Improperly installing or replacing parts could damage your HP device or void your warranty. Before replacing any parts, check your warranty. Continue the Conversation: http://hp.care/SupportForums http://hp.care/FacebookSupport http://hp.care/TwitterSupport #HPSupport #HPComputerService #HPomenDesktop #HP SUBSCRIBE: https://www.youtube.com/HPSupport SHOP NOW: https://www.hp.com/online-store HP PARTS STORE: https://parts.hp.com About HP: HP Inc. creates technology that makes life better for everyone everywhere - every person, every organization, and every community around the globe. Through our portfolio of printers, PCs, mobile devices, solutions, and services, we engineer experiences that amaze. Connect with HP: Visit HP WEBSITE: http://www.hp.com Like HP on FACEBOOK: https://www.facebook.com/HP Follow HP on TWITTER: https://twitter.com/HP Follow HP on INSTAGRAM: https://www.instagram.com/hp Follow HP on LINKEDIN: https://www.linkedin.com/company/hp This video was produced by HP.
