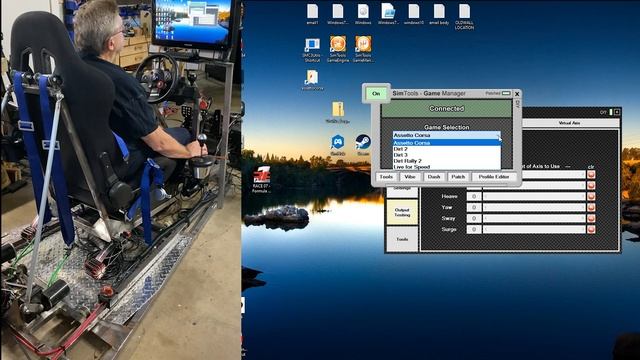

diy motion simulator build - Powering up my 3DOF Motion Simulator build. Arduino, IBT-2 controllers. Simtools 3 DOF motion platform VR and buttkickers - VR POV. I wanted to show a basic way to power up my Motion Simulator. #WeStandWithSimRacing604 @SimRacing604 ________________________________________________________ My setup consists of: 3 DOF motion platform VR and tactile feedback - Arduino IBT-2 controllers - Simtools - SimHub - Buttkicker gamer 2 - Oculus Rift - Fanatec V3 pedal set _______________________________________________ 00:00 Intro 00:34 Quick overview of 3DOF motion simulator build 03:33 Starting the Rig SMC3 software 04:50 Easy Test to show you how to set up your motors 05:00 Normally only test if something is not working right 05:20 Start up SIMTOOLS game ENGINE settings 07:47 Testing 3DOF motion simulator SIMTOOLS GAME ENGINE 08:37 Starting Game manager Assetto Corsa 10:50 Game Plug in's available on X-Simulator 12:15 Racing GROBNIC BMW Horizion Shades Natural filter 13:45 SIR SPATS GAMING CHANNEL! 15:30 GROBNIC BMW Reshade.me inmersive natural filter My build details on XSimulator.net https://www.xsimulator.net/community/threads/full-frame-2-dof-traction-loss-new-build.14740/ Sir Spats Gaming channel https://www.youtube.com/channel/UC7JjjEgThTgZEreug7m1Q-w Parts I use are as follows: 50:1 12volt motors just search Ebay for GEAR MOTOR 12 VOLT GREAT FOR SAWMILL/CRAB POT PULL/FEED/SIMULATOR 75-80RPM 50:1 (sold by PGSAW in Canada) Hall Effect Potentiometers DIGI-Key and others PN 987-1392-ND https://www.digikey.co.uk/en/products/detail/tt-electronics-bi/6127V1A180L-5FS/2620661 Arduino UNO R3 - amazon. I have also used the cheaper ELEGOO clone. https://www.amazon.com/Arduino-A000066-ARDUINO-UNO-R3/dp/B008GRTSV6/ref=sr_1_3?dchild=1&keywords=arduino+uno&qid=1613675805&sr=8-3 IBT-2 motor controllers up to 43amps (which is a lot!) https://www.amazon.com/dp/B00WSN98DC?tag=amz-mkt-chr-us-20&ascsubtag=1ba00-01000-a0049-win10-other-nomod-us000-pcomp-feature-scomp-wm-5&ref=aa_scomp other motor controllers you could consider using are JRK12V12 or Sabertooth but I use IBT-2's XSIMULATOR forum - Info specifically for arduino/IBT-2 for 1 to 3 Motors. You can use up to three motors per arduino. But you each motor needs it's own IBT-2 controller. https://www.xsimulator.net/community/threads/smc3-arduino-3dof-motor-driver-and-windows-utilities.4957/ My build on X-Simulator.net https://www.xsimulator.net/community/threads/full-frame-2-dof-traction-loss-new-build.14740/ - #WeStandWithSimRacing604 @SimRacing604 Check out a new Magazine for us SIM RACERS.. DIGITAL CAR CULTURE. Here's the link https://www.digitalcarculture.com/
