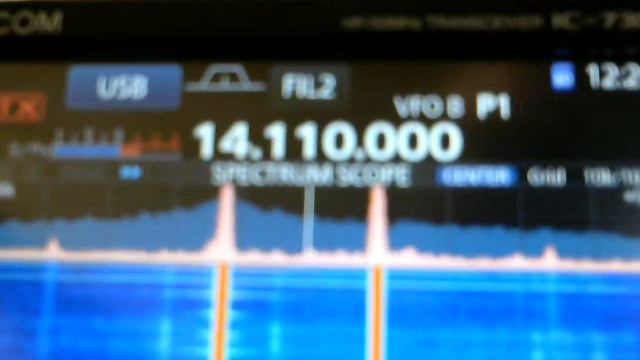

test imd ic7300
setup generatori A rf out -2.5 dBm B rf out -2.5 dBm combiner perdita d'inserzione -6.5 dB out combiner - 9dBm att fisso 6 dB o Att. variabile 12 dB step 1 dB. Input RF RX da -27 dBm a -15 dBm setup RX cent. freq 14.110.00 modo usb filtro 2.4kHz pre 1 e 2 off att. off
setup generatori A rf out -2.5 dBm B rf out -2.5 dBm combiner perdita d'inserzione -6.5 dB out combiner - 9dBm att fisso 6 dB o Att. variabile 12 dB step 1 dB. Input RF RX da -27 dBm a -15 dBm setup RX cent. freq 14.110.00 modo usb filtro 2.4kHz pre 1 e 2 off att. off
