Automatic monoblock filling plugging capping machine for air freshener liquid mosquito repellent fi

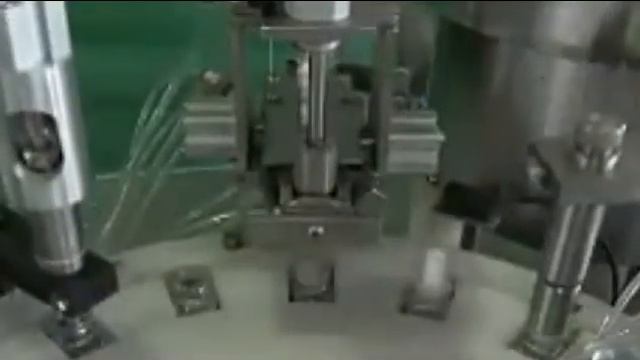

Automatic monoblock filling plugging capping machine for air freshener liquid mosquito repellent fill line Brand PENGLAI model YX-shz-cy Power 1 (kw) Dimensions 2000mm * 860mm * 1400mm Filling nozzles: 3 Filling volume 3-60 (ml) Applicable bottle height 28 (mm) Applicable bottle diameter 20 (mm) Capacity 40 (bottles/ min) Filling accuracy 99 (%) Container Type: Bottle Working Principle: Compressed Air Applicable products: Oil, hair care products, skin care category, cosmetics category, cleaning, cleaning supplies, syrup, liquid alcohol, other applicable industry, chemical, chemical, other Material type: liquid Automation: fully automatic Car perfume filling machine - The bottles will be manually placed onto the turntable for feeding,while the wick and the cap were placed in the vibratory bowl feeders for auto feeding. The bottles then conveyed into the monoblock machine for filling. - Photoelectric detection station: the photoelectric sensor at the station detects whether there is to be filled bottles, no bottle no filling. - Filling station: When the bottle reaches the filling station, if the previous photoelectricity detects the presence of the bottle, that is, when filling, the internal chip sends out the filling signal; the filling nozzle automatically dives into the bottle for automatic filling. - Filled bottles indexed into the plugging statio for wick placing. - press the wick plug into the bottle neck. - Automatic cap placing station: caps are orientated in the virbatory bowl and sent to the feeding trackes in order for cap placing. - Capping station:the bottle with cap is fed into the capping station and with cap tightened by the capping chuck. - bottle discharge station: the capped bottles are discharged out of the starwheel by the swing arm. Technical parameters: - Filling volume: 3-60ml - Yield: 40 bottles / min - Filling accuracy: ≥ 99% - drop wick yield: ≥ 99% - drop cap yield: ≥ 99% - capping yield: ≥99% - Main unit power: 1kw 220v or 110V single phase virable speed control Our Factory since 1992 has been manufacturing the cosmetic&food making and packaging machinery.In these field we have the experience rich enough to solve the questions encountered by our customers from both home and abroad. For more information about penglai packaging, please visit our website at http://penglaipacking.com SHENZHEN PENGLAI INDUSTRIAL CORPORATION LIMITED Contact:Michael Peng Skype: penglaichina Email: penglaipacking@gmail.com whatsapp:+86-15012795261
