Civil 3D: Adding a coordinate XY display to a elevation Label

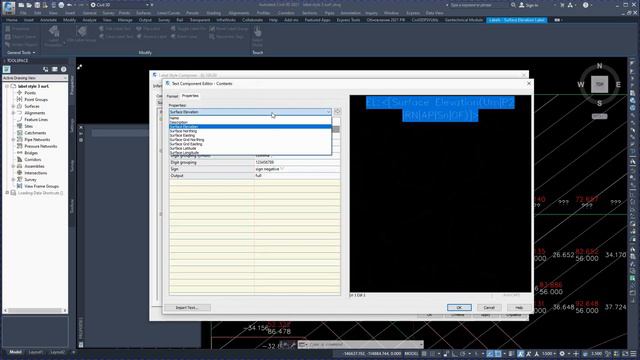

Where the coordinates change dynamically when the Label is moved You can also add a coordinate display to the label that displays the elevation on the surface, which will be displayed even if we go beyond the surface boundary. 0:00:03 Add Label 0:00:07 Edit Label Style 0:00:13 Edit Current Selection 0:00:15 To Add Property Set Data to Labels 0:00:20 Zoom in on the text (Ctrl+ mouse wheel) 0:00:25 Using the arrow, add the coordinates to the window on the right 0:00:29 where to change the accuracy by 3 digits after the dot To set up a label style to include property set data - Open the Label Style Composer by creating or editing a label style for the object. - In the Label Style Composer dialog box, click the Layout tab. - Select an existing component from the Component Name list, or add a new component for the label text. - Under Text, click in the Value column for Contents, and then click . - In the Text Component Editor dialog box, click the Property Sets tab. - Note: The Property Sets tab will not appear in the Text Component Editor if there is no property set applied to the relevant object type. - Select the property set definition to use and the property to insert. - Click → to insert the property into the text window. In the following example, the Type property has been added to the label style after the point number. - After adding each property into the text window, click in the window and press Enter to insert a paragraph return. - Add static text as needed in the Text Component Editor window, such as "Condition" or "Tree Height". - To do this, click in the Text Component Editor window and enter the text directly. - Click OK. https://help.autodesk.com/view/CIV3D/2024/ENU/?guid=GUID-B8FEAF98-EB43-4466-B00B-8EAD63948A7E
