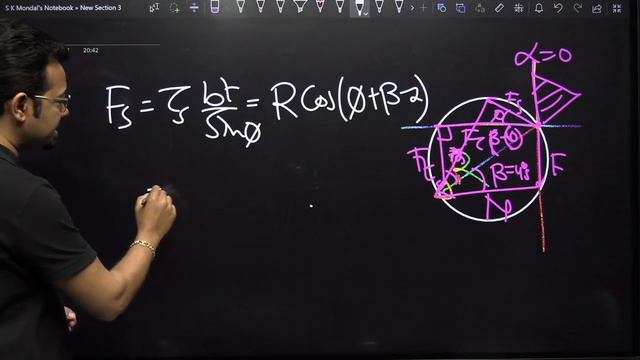

In an orthogonal machining operation, the cutting and thrust forces are equal in magnitude. The uncut chip thickness is 0.5 mm and the shear angle is 15. The orthogonal rake angle of the tool is 0 and the width of cut is 2 mm. The workpiece material is perfectly plastic and its yield shear strength is 500 MPa. The cutting force is ___ N (round off to the nearest integer). In this video S K Mondal is giving detailed solution of GATE 2022 Set 2 Afternoon sey question. Below is the playlist of video solutions of all questions ( all subjects ) of GATE 2022 Playlist of Morning Set : Playlist of Afternoon Set : Tags : #GATE2022 #MondalSir #SKMondal #production #merchantcircle #set2 #afternoonset #morningsetGATE2022 #mechanicalengineering #mechanicalGATE2022
