Ansys Tutorial 1 for Optimum Design Course

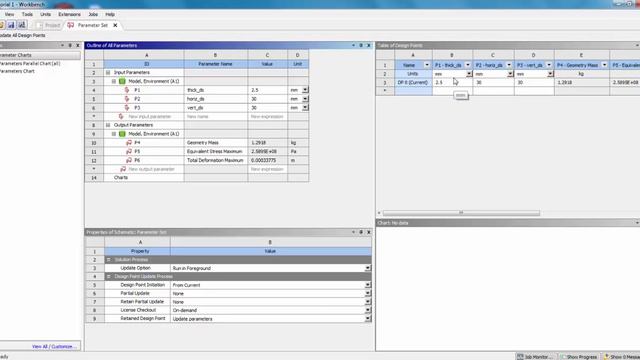

Optimum Design Tutorial By Using Ansys Mechanical for a bracket. A finite Element solution of the problem is given. The bracket width, height and thickness will be changed. Four different design cases will be compared. The bracket mass and Maximum Stress and Deflection will be evaluated for the different design cases. The Tutorial instructions is uploaded at: http://drahmednagib.com/courses/optimum-design-2016/tutorials/index.html
