Basics 05: Expanding PLC IOs with OpenPLC Slave Devices

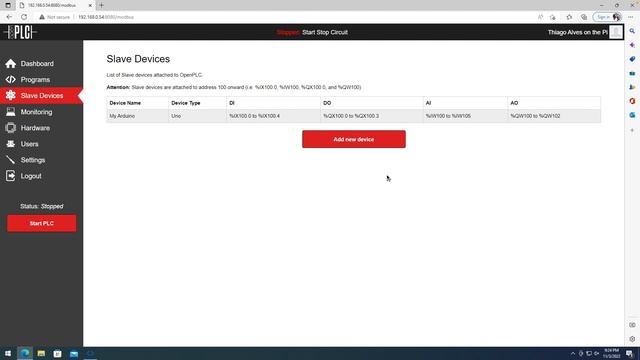

On Basics 05: you will explore OpenPLC's Slave Devices module to expand your PLC's IOs. For this video, we will be using a Raspberry Pi, which is quite limited in number of IOs, as the main PLC running OpenPLC Runtime. The Raspberry Pi's IOs are then expanded using an Arduino Uno board connected to the Pi's USB port. Configuring Slave Devices 01:38 Adding multiple Slaves 08:11 Configuring poll rate 10:26 Adding Arduino Uno to Raspberry Pi 11:46 Burning Arduino firmware 12:30 Writing PLC program 17:14 Testing the circuit 24:28 https://openplcproject.com/ Please consider supporting OpenPLC by joining our Patreon: https://www.patreon.com/openplc OpenPLC Friends: Freewave FACTS Engineering
On Basics 05: you will explore OpenPLC's Slave Devices module to expand your PLC's IOs. For this video, we will be using a Raspberry Pi, which is quite limited in number of IOs, as the main PLC running OpenPLC Runtime. The Raspberry Pi's IOs are then expanded using an Arduino Uno board connected to the Pi's USB port. Configuring Slave Devices 01:38 Adding multiple Slaves 08:11 Configuring poll rate 10:26 Adding Arduino Uno to Raspberry Pi 11:46 Burning Arduino firmware 12:30 Writing PLC program 17:14 Testing the circuit 24:28 https://openplcproject.com/ Please consider supporting OpenPLC by joining our Patreon: https://www.patreon.com/openplc OpenPLC Friends: Freewave FACTS Engineering
