Lesson 03 - KCL - SUPER NODE ANALYSIS

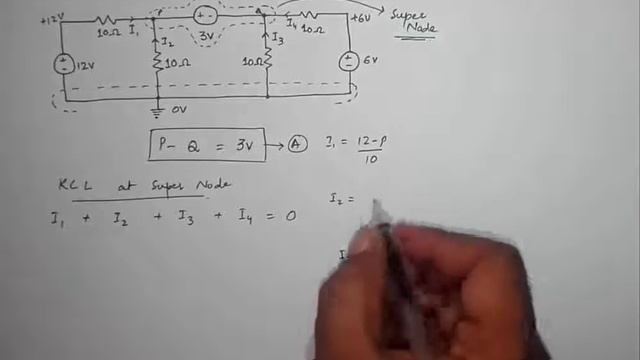

People often consider super nodes to be difficult to work with. But I say they are not. Watch how to perform super node analysis at https://youtu.be/W_OXk2TJtpU KCL or krichoff laws can be applied to the circuits in the same way as other circuits. - select reference node - select supernode as the active element that does not have one of the sides connected to reference node. - select directions of currents - apply KCL - solve the equations to get the value of voltages and currents.
