Replace the Rear Speakers | HP SlateBook 14-p000 PC | HP

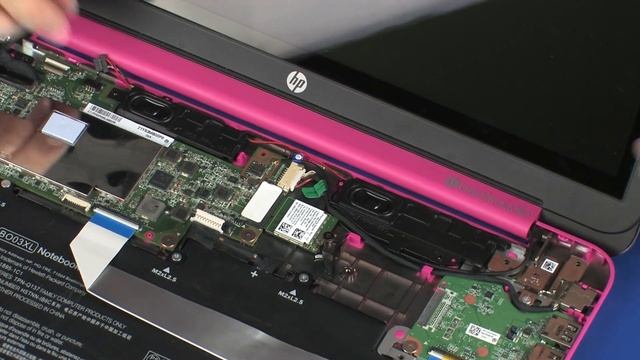

Learn how to replace the rear speakers for HP SlateBook 14-p000 PC. For other helpful videos go to http://hp.com/supportvideos or http://youtube.com/hpsupport. More support options for your HP device are available at http://hp.com/support. Note: The following video depicts a specific configuration of the notebook. The same removal and replacement procedures apply to all configurations of the notebook. Before you begin: Remove the top cover. Removal Important: Make careful note of the routing of the speaker cables for later replacement. 1. Disconnect the speaker cable from its connector on the system board. 2. Remove the speaker cable from the routing channel on the system board. 3. Remove the two 2.5 mm P1 Phillips-head screws that secure the speakers to the base enclosure. 4. Carefully remove the speakers from the alignment pins and retention tabs on the base enclosure. 5. Remove the speakers. Replacement 1. Place the speakers onto the alignment pins and under the retention tabs on the base enclosure. 2. Replace the two 2.5 mm P1 Phillips-head screws that secure the speakers to the base enclosure. 3. Guide the speaker cable through the routing channel on the system board. 4. Connect the speaker cable into its connector on the system board. Caution: Improperly installing or replacing parts could damage your HP device or void your warranty. Before replacing any parts, check your warranty. Continue the Conversation: http://hp.care/SupportForums http://hp.care/FacebookSupport http://hp.care/TwitterSupport #HPSupport #HPComputerService #HPslatebook #HP SUBSCRIBE: www.youtube.com/HPSupport SHOP NOW: https://www.hp.com/online-store HP PARTS STORE: https://parts.hp.com About HP: HP Inc. creates technology that makes life better for everyone everywhere - every person, every organization, and every community around the globe. Through our portfolio of printers, PCs, mobile devices, solutions, and services, we engineer experiences that amaze. Connect with HP: Visit HP WEBSITE: http://www.hp.com Like HP on FACEBOOK: https://www.facebook.com/HP Follow HP on TWITTER: https://twitter.com/HP Follow HP on INSTAGRAM: https://www.instagram.com/hp Follow HP on LINKEDIN: https://www.linkedin.com/company/hp This video was produced by HP.
