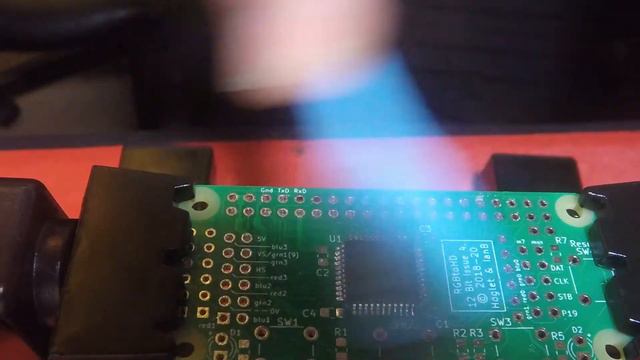

Soldering some chips for the RGBtoHDMI
https://github.com/hoglet67/RGBtoHDMI/wiki Farnell Parts List - cost roughly £150 2494583 - 50 - 05.12.113 - ETTINGER 05.12.113 Standoff, Nickel Plated, Brass, M2.5, Hex Male-Female, 11 mm, 17 mm 9356240 - 50 - 4606X-101-472LF - BOURNS 4606X-101-472LF Fixed Network Resistor, 4.7 kohm, Bussed, 5 Elements, SIP, 6 Pins, PC Pin 2831287 - 10 - XC9572XL-10VQG44C - XILINX XC9572XL-10VQG44C CPLD, FLASH, 72, 34 I/O's, VQFP, 44 Pins, 100 MHz 1142509 - 25 - L-934LGD - KINGBRIGHT L-934LGD LED, Low Power, Green, Through Hole, T-1 (3mm), 20 mA, 2.2 V, 568 nm 2827916 - 16 - 61304021821 - WURTH ELEKTRONIK 61304021821 PCB Receptacle, Board-to-Board, 2.54 mm, 2 Rows, 40 Contacts, Through Hole Mount, WR-PHD Series 1593458 - 50 - 2212S-02SG-85 - MULTICOMP PRO 2212S-02SG-85 PCB Receptacle, Board-to-Board, 2.54 mm, 1 Rows, 2 Contacts, Through Hole Mount, 2212S Series 2984560 - 15 - SLW-105-01-T-D - SAMTEC SLW-105-01-T-D PCB Receptacle, Square Post, Board-to-Board, 2.54 mm, 2 Rows, 10 Contacts, Through Hole Mount 1652937 - 100 - CRCW08051K00JNEA - VISHAY CRCW08051K00JNEA SMD Chip Resistor, 1 kohm, ± 5%, 125 mW, 0805 [2012 Metric], Thick Film, General Purpose - Cut Tape 2779668 - 10 - TSW-106-08-L-D-RA - SAMTEC TSW-106-08-L-D-RA Pin Header, Board-to-Board, 2.54 mm, 2 Rows, 12 Contacts, Through Hole Right Angle, TSW Series 1907513 - 50 - GRM21BC81C106KE15L - MURATA GRM21BC81C106KE15L SMD Multilayer Ceramic Capacitor, 10 µF, 16 V, 0805 [2012 Metric], ± 10%, X6S, GRM Series - Cut Tape 499687 - 50 - 08055C104KAT2A - AVX 08055C104KAT2A SMD Multilayer Ceramic Capacitor, 0.1 µF, 50 V, 0805 [2012 Metric], ± 10%, X7R - Cut Tape 2056816 - 50 - SKHHBWA010 - ALPS ALPINE SKHHBWA010 Tactile Switch, SKHH Series, Top Actuated, Through Hole, Round Button, 160 gf, 50mA at 12VDC 2725179 - 10 - 2213S-40G - MULTICOMP PRO 2213S-40G Pin Header, Board-to-Board, 2.54 mm, 2 Rows, 40 Contacts, Through Hole 2827902 - 10 - 61301221821 - WURTH ELEKTRONIK 61301221821 PCB Receptacle, Board-to-Board, 2.54 mm, 2 Rows, 12 Contacts, Through Hole Mount, WR-PHD Series
