B A T M A N-ADV HOME MESH SETUP NETWORKING OPENWRT

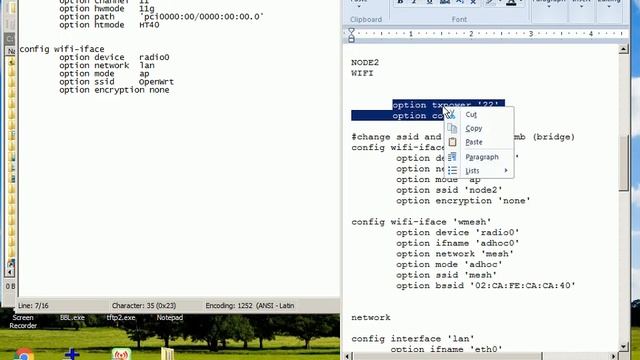

setting up 3 nodes with batman adv and openwrt on a D-LINK DIR 615 for a home mesh network. http://www.radiusdesk.com/old_wiki/technical_discussions/batman_basic WIFI NODE1 option txpower '22' option country 'US' config wifi-iface option device 'radio0' option network 'lan' option mode 'ap' option ssid 'node1' option encryption 'none' config wifi-iface 'wmesh' option device 'radio0' option ifname 'adhoc0' option network 'mesh' option mode 'adhoc' option ssid 'mesh' option bssid '02:CA:FE:CA:CA:40' network config interface 'lan' option ifname 'eth0 bat0' option type 'bridge' option proto 'static' option ipaddr '192.168.0.25' option netmask '255.255.255.0' option ip6assign '60' config interface 'mesh' option ifname 'adhoc0' option mtu '1532' option proto 'batadv' option mesh 'bat0' NODE2 WIFI option txpower '22' option country 'US' #change ssid and network add mb (bridge) config wifi-iface option device 'radio0' option network 'mb' option mode 'ap' option ssid 'node2' option encryption 'none' config wifi-iface 'wmesh' option device 'radio0' option ifname 'adhoc0' option network 'mesh' option mode 'adhoc' option ssid 'mesh' option bssid '02:CA:FE:CA:CA:40' network config interface 'lan' option ifname 'eth0' option type 'bridge' option proto 'static' option ipaddr '192.168.0.6' option netmask '255.255.255.0' config interface 'mesh' option ifname 'adhoc0' option mtu '1532' option proto 'batadv' option mesh 'bat0' #add the mb bridge config interface 'mb' option ifname 'bat0' option type 'bridge' option proto 'static' option ipadder '192.168.0.26 option netmask '255.255.255.0' NODE3 WIFI option txpower '22' option country 'US' #change ssid and network add mb (bridge) config wifi-iface option device 'radio0' option network 'mb' option mode 'ap' option ssid 'node3' option encryption 'none' config wifi-iface 'wmesh' option device 'radio0' option ifname 'adhoc0' option network 'mesh' option mode 'adhoc' option ssid 'mesh' option bssid '02:CA:FE:CA:CA:40' network config interface 'lan' option ifname 'eth0' option type 'bridge' option proto 'static' option ipaddr '192.168.0.7' option netmask '255.255.255.0' config interface 'mesh' option ifname 'adhoc0' option mtu '1532' option proto 'batadv' option mesh 'bat0' #add the mb bridge config interface 'mb' option ifname 'bat0' option type 'bridge' option proto 'static' option ipadder '192.168.0.27 option netmask '255.255.255.0'
