Baykal APHS 31090 Hydraulic Press Brake - MC# 601407

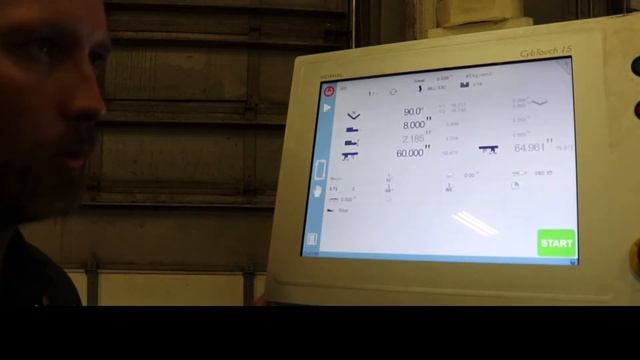

To the best of our knowledge all details listed below are deemed correct. It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase. Equipped With: CNC CybTouch12 GRAPHICAL CONTROL -4-Axis — Y1, Y2, X, R -Servomotor Back Gauge and Ball Screw System (X-R) -CNC Crowning System -European Top Clamping System -European Die Holder (2.4") -Sliding Front Arms with Full-Length Linear Guide and Brush -Specially Designed Safety Covers (Side and Back) -World Standard Electrical Equipment (Off-the-Shelf Replaceable) OPTIONAL FEATURES -MDS Laser Kit (for Top Beam) -Manual MCS+DSP AP Laser Kit (PLC Included) -Motorized MCS+DSP AP Laser Kit (PLC Included) -Other Control Unit (CybTouch15, ModEva PAC, Delem DA-52S, Delem DA-58T, Delem DA-66T, Delem DA-69T) -Z1-Z2 Axis -Z1-Z2 + Z5 Axis -Extended Back Gauges (X: 750 / 1000 / 1250mm) -Quick Release Clamping -WILA PRO and PREMIUM Top and Bottom Clamping Systems -Manual Central Lubrication System -Motorized Central Lubrication System -Laser Bending Line -CE Confirmation with Light Curtain (Back Side) -Additional Back Gauge Fingers and Sliding Front Support Arms General Specifications: Bending Force: 100 US Tons Max. Bending Length: 122.05" Dist Between Housing: 100" Max. Stroke: 10.23" Max. Daylight (Open Height without Tools): 20.00" Throat Depth: 16.14" Approach Speed: 425.4 IPM Bending Speed: 23.4 IPM Return Speed: 283.2 IPM X-Axis Stroke: 25.59" R-Axis Stroke: 9.84" Crowning: Motorized Support Arms: 3 Pieces Oil Tank Capacity: 50 Voltage: 220 Or 460 Machine Dimensions: 170" x 67" x 102" Machine Weight: 17,416 Lbs. MACHINE BODY -Main frame steel construction is St 44-2 -Rigid -Minimum deflection -Foundation advantage -Strong and long-life body -Durability under high pressure -Upper beam is Monoblock -All welded parts are stress relieved HYDRAULIC SYSTEM -Hoerbiger hydraulic system integrated with oil cooler -Large Oil Capacity with Cooler for Increased Machine Component Life -Extremely low noise emission -Extremely favorable size/displacement ratio -Long service life by plain bearings balances the forces -High overall efficiency -Main Motor: Gamak – Watt -Fittings are Walter-Shade brand -Valves are Bosch-Rexroth, Filters are Rexroth -O-rings and sealings are made by Kastas -We are using last technology Omega type sealing -Advantages of Omega type sealing -Good pump back capability -No stick-slip -Low friction -Abrasion resistant / Short installation length
