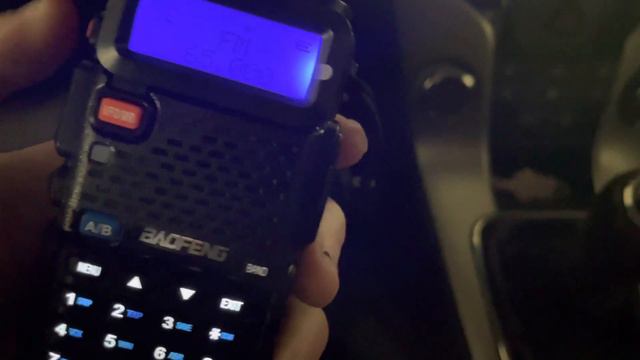

Baofeng Basics - All The Baofeng UV-5R Menu Settings Explained - Part 2 of 2
Link to Part 1 in description below https://youtu.be/Ydc6cJX64Ng All Baofeng MENU settings explained complete list of Baofeng UV-5R menu settings 0-40 all below list of UV-82 settings RETEVIS POFUNG UV-82HP Chinese radios check your FENG KNOWLEDGE LEVEL SQL - RF squelch setting STEP - VFO frequency step 2.5 kHz, 5 kHz, 6.25 kHz, 10 kHz, 12.5 kHz, 20 kHz, 25 kHz, 50 kHz. This is NOT the receive/transmit bandwidth or FM deviation setting TXP - transmit power / TX power setting SAVE - battery save setting VOX - voice activated transmit switch WN - bandwidth / deviation setting WIDE or NARR (narrow). Should be set to NARR for most applications - WIDE is FM in CHIRP and other programming software. NARR is NFM ABR - backlight setting timer TDR - True Dual Watch - dual watch mode BEEP - button press beep tone ON or OFF TOT - transmit time out timer (limits transmission time to any value from 15 seconds to 600 seconds in 15 second increments, may also be switched off) R-DCS - receive DCS (DPL, DQT) code squelch setting - D023N to D754N and D023I to D754I or OFF R-CTCS - receive CTCSS (PL) tone squelch setting - tone value in Hz, 67.0 Hz to 254.1 Hz or OFF T-DCS - transmit DCS (DPL, DQT) code squelch setting - D023N to D754N and D023I to D754I or OFF T-CTCS - transmit CTCSS (PL) tone squelch setting - tone value in Hz, 67.0 Hz to 254.1 Hz or OFF VOICE - menu voice prompt, English or Chinese (or OFF, thankfully) ANI-ID - automatic number ID - default value is 80808 - ANI is transmitted using DTMF tones DTMFST - side tone (speaker) output mode, lets you hear your DTMF tones (or not) and/or your ANI tones (or not) S-CODE - ANI code selection SC-REV - reverse mode (repeater input monitor or CTCSS/DCS switch transmit and receive values) PTT-ID - automatic number identification (ANI) setting, BOT (beginning of transmission), EOT (end of transmission), BOTH (beginning of and end of transmission) or OFF PTT-LT - backlight timer (how long the display backlight stays on after you release the PTT button) MDF-A - memory channel display mode (A) - name, channel number or frequency MDF-B - memory channel display mode (B) - name, channel number or frequency BCL - busy channel lockout (prevents transmit if the channel / frequency is busy) AUTOLK - automatic keypad lock SFT-D - repeater offset + or - (positive or negative offset for repeater split operation) OFFSET - repeater offset value MEM-CH - memory channel save DEL-CH - memory channel delete WT-LED - display backlight color standby RX-LED - display backlight color during RX TX-LED - display backlight color during TX AL-MOD - alarm mode BAND - VHF or UHF (changes automatically) TDR-AB - dual watch A or B side (top/bottom) STE - squelch tail eliminator (squelch crash) RP-STE - repeater squelch tail eliminator RPT-RL PONMGS - power on message or display test ROGER - "Roger beep" on or off RESET - radio reset (factory reset) 462.56250 NFM - FRS 1 462.58750 NFM - FRS 2 462.61250 NFM - FRS 3 462.63750 NFM - FRS 4 462.66250 NFM - FRS 5 462.68750 NFM - FRS 6 462.71250 NFM - FRS 7 467.56250 NFM - FRS 8 467.58750 NFM - FRS 9 467.61250 NFM - FRS 10 467.63750 NFM - FRS 11 467.66250 NFM - FRS 12 467.68750 NFM - FRS 13 467.71250 NFM - FRS 14 462.55000 NFM - FRS 15 462.57500 NFM - FRS 16 462.60000 NFM - FRS 17 462.62500 NFM - FRS 18 462.65000 NFM - FRS 19 462.67500 NFM - FRS 20 462.70000 NFM - FRS 21 462.72500 NFM - FRS 22 MURS CHANNEL LIST MURS FREQUENCIES 151.82000 NFM - MURS 1 151.88000 NFM - MURS 2 151.94000 NFM - MURS 3 154.57000 FM or NFM - MURS 4 154.60000 FM or NFM - MURS 5 151.62500 NFM - Red Dot 151.95500 NFM - Purple Dot 151.625 MHz and 151.955 MHz are not part of MURS. A license is required to use 151.625 and 151.955, as well as the other VHF and UHF business frequencies, such as 464.5500, 464.5000, 469.5500, 469.5000, 467.9250, 467.9000, 467.8750, 467.8500, 467.8125, 467.7625, 451.8125, 456.8125, 467.9125, 467.8875, 467.8625, 467.8375, 467.7875, 467.7500, 451.8000, 456.8000, etc. FRS Frequencies GMRS Channels MURS Channels MURS frequencies CB radio channels on ham radio freeband frequencies 26-33 MHz band illegal CB radio illegal frequencies secret frequencies Front panel programmable FPP UV-5R programming how to program Retevis Walkie-Talkie how to program BF-888S BF-9700 Luiton LT-458 LT-298 CB radio Radioditty GA-2S Radioditty CB-27 CB-27PRO AM CB radio AM FM CB radio export mode frequency expansion mod radio hacks modifications CB Radio modifications 27 MHz band DX 27MHz repeater MURS repeater 151.880 MHz 156.7 Hz 156.7Hz 254.1Hz 467.80000 MHz 467.8 MHz 451.3375 MHz 159.8Hz 159.8 Hz CTCSS R-DCS T-DCS CTCSS explained what are PL tones FRS channels CB radio channels CB channels on a ham radio which channels do police use list of militia channels patriot prepper SHTF frequency list radio master reports radios cache ammo stockpile 223 5.56x45 7.62x51 NATO 7.62x54R .30-06 best overall utility cartridge caliber
